Automation of Wash Room
Hand Dryer

project

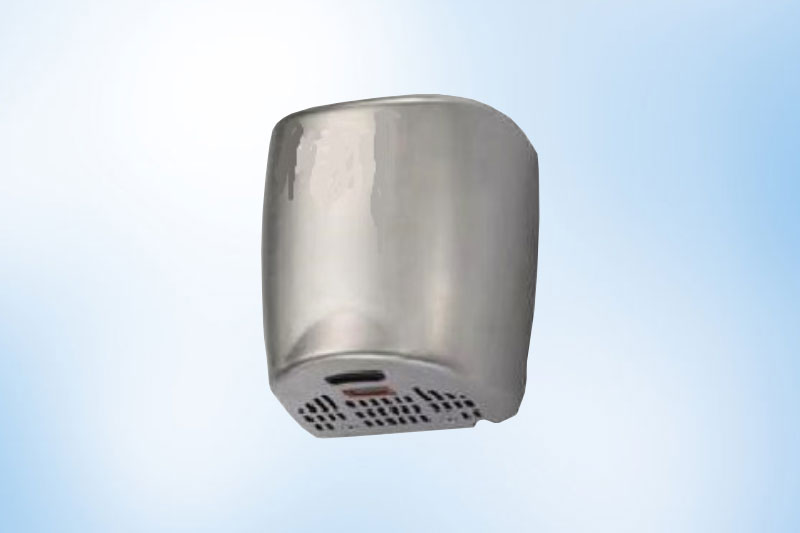

Stainless Steel Jet Hand Dryer

Stainless Steel Jet Hand Dryer

Specification :

  • Model No. : TS-5104
  • Voltage : AC 220-240V / 50-60Hz
  • Air Speed : 85-95 m/s
  • Drying Time : 5-7 Sec.
  • Motor Type : DC Brush Motor
  • Power : 800W + 850W Heater
  • Waterproof : IPX4
  • RPM : 24000
  • Safe Protection : Ex-High Temperature, Ex-Long Time Super High Current

project
Jet TS-KKB1 JET HAND DRYER

Jet TS-KKB1 JET HAND DRYER

Specification :

  • Body Material : ABS Body
  • Voltage : 250V/50Hz
  • Rated Power : 850W
  • Current : 6.5A
  • Water Splash : IP x 1
  • Blowing Volume : 150m 3/h
  • Drying Time : < 5 Sec.
  • Time Pretection : 18 Second
  • Sensing Range 20cm + .5cm
  • Dimension : 650x250x292mm
  • Weight : 13.2 Kg

project
Whirlwind Jet Hand Dryer

Whirlwind Jet Hand Dryer

Specification :

  • Model No. TS-5145
  • Operating Voltage : AC 220-240V / 50-60Hz
  • Air blowing : 65-110 m/s (adjustable)
  • Rated Power : 1300w (brushless motor) 1450w (brush motor)
  • Motor Power : 450w - 750w
  • Noise Level : 69 db
  • Estimated Drying Time : 6 seconds
  • Meets IPX 1 Waterproof classification making it practical and safe for use in a wet environment.
  • Infrared Auto shut off
  • Stand by energy consumation : 3 watts
  • Shell Material : ABS Plastic
  • Unit Size : 598x322x185mm

project
Jet Hand Dryer (White)

Jet Hand Dryer (White)

Specification :

  • Model : TS-5152 (White / Silver)
  • Body Material : ABS Plastic
  • Motor Type : Brush motor
  • Voltage : 220-240V
  • Rated Power : 2000W
  • Rated Frequency : 50-60 Hz
  • Rated Current : 9A
  • Drying Time : 6-12s
  • Air Speed : 65 m/s
  • Display : LED Screen

project
Meteoric Jet Hand Dryer

Meteoric Jet Hand Dryer

Specification :

  • Model : TS-5144
  • Automatic operation by infra - red motion sensor
  • Super - alleru buster filter equipped to ensure clean and healthy airflow
  • Anti bacterial material adopted to prevent growth of bacterial and germs
  • Heater on/off switch for energy saving in summer season
  • Watts (w) : 950
  • Power : AC220V / 50Hz
  • Blowing Rate : 100 m/s
  • Colour : White
  • Blowing Volume 90 m3/h
  • Motor Speed : 25000 RPM
  • Drying Time : 5-9 secounds
  • Dual Switch : Cold & Hot wind

project
Stainless Steel Hand Dryer

Stainless Steel Hand Dryer

Specification :

  • Model : TS-5110
  • Material : Stainless Steel (304G)
  • Power : 1800W
  • Power Supply : AC 220V 50Hz
  • Air Speed : 95 m/s
  • RPM : 25000
  • Drying Time : 7-10 seconds
  • Noise Level : 75 db
  • Dimension : 295x171x325mm

project
S.Stee Hand Dryer

S.Stee Hand Dryer

Specification :

  • Model : TS-5157
  • Material : Stainless Steel (304G)
  • Power : 1800W
  • Power Sukpply : AC 220V 50Hz
  • Air Speed : 95 m/s
  • RPM : 25000
  • Drying Time : 7-10 seconds
  • Noise Level : 75 db
  • Dimension : 240x174x270 mm

project
S.Steel Hand Dryer

S.Steel Hand Dryer

Specification :

  • Model : TS-5150
  • Material : Stainless steel (304G)
  • Power : 1200W
  • Power Skupply : AC 220V 50-60Hz
  • Air Speed : 80 m/s
  • RPM : 25000
  • Drying Time : 10-15 seconds
  • Noise Level : 48 db
  • Dimension : 205x272x185mm

project
Stainless Steel Hand Dryer

Stainless Steel Hand Dryer

Specification :

  • Model : TS-5106
  • Material : Stainless Steel (304G)
  • Power : 2500 W
  • Power Supply : 230V 50Hz
  • Air Speed : 30 m/s
  • RPM : 12000
  • Drying Time : < 15 Sec.
  • Noise Level : 45 db
  • Dimension : 275x200x230 mm

project
S.Steel Hand Dryer

S.Steel Hand Dryer

Specification :

  • Model : TS-5111
  • Material : Stainless Steel (304G)
  • Power : 2100W
  • Power Supply : 220V 50Hz
  • Air Speed : 30 m/s
  • RPM : 9000
  • Drying Time : < 20 Sec.
  • Noise Level : 40 db
  • Dimension : 235x200x245mm

project
S.Steel Hand Dryer

S.Steel Hand Dryer

Specification :

  • Model : TS-5147
    • Material : Stainless steel (304G) Power : 1650W Power Supply : AC 220V / 50Hz Air Speed : 12 m/s RPM : 2100 Drying Time : < 30 Sec. Dimension : 225x157x282mm

project
Robust Iron Hand Dryer

Robust Iron Hand Dryer

Specification :

  • Model : TS-5148
  • Material : Iron
  • Power : 1500W
  • Power Supply : 220V (50Hz-60Hz)
  • Air Speed : 16 m/s
  • RPM : 2100
  • Drying Time : < 50 Sec.
  • Noise Level : 30 db
  • Dimansion : 265x125x205mm

project
Hand Dryer Elegant

Hand Dryer Elegant

Specification :

  • Model : TS-5142
  • Material : ABS
  • Power : 1500W
  • Power Supply : 220V / 50Hz
  • Air Speed : 16 m/s
  • RPM : 2800
  • Drying Time : < 20 Sec.
  • Dimension : 240x205x255mm

project
Quick Dry

Quick Dry

Specification :

  • Model : TS-5108
  • Material : ABS
  • Power : 1000W
  • Air Speed : 30 m/s
  • RPM : 22000
  • Drying Time : < 15 sec.
  • Dimension : 248x175x250mm

project
ABS Hand Dryer

ABS Hand Dryer

Specification :

  • Model : TS-5151
  • Material : ABS
  • Power : 1200W
  • Power Supply : AC220V / 50-60Hz
  • Air Speed : 80 m/s
  • RPM : 25000
  • Drying Time : 10-15 sec.
  • Noise Level : 48 db
  • Dimension : 205x272x185mm
  • With Hot & Cold Option

project

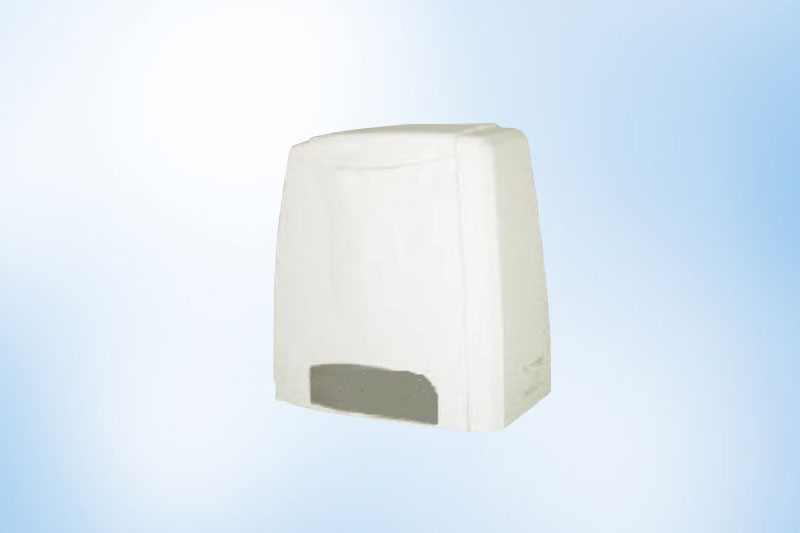

Hand Dryer White

Hand Dryer White

Specification :

  • Model : TS-5105
  • Material : ABS (White)
  • Power : 1800W
  • Power Supply : 220V / 50Hz
  • Air Speed : 14 m/s
  • RPM : 2800
  • Drying Time : < 20 Sec.
  • Noice Level : 30 db
  • Dimension : 290x158x300mm

project
Hand Dryer Sleek Model

Hand Dryer Sleek Model

Specification :

  • Model : TS-5107
  • Material : ABS (White)
  • Power : 1650W
  • Power Supply : 220V / 50Hz
  • Air Speed : 12 m/s
  • RPM : 3700
  • Drying Time : < 30 Sec.
  • Noise Level : 25 db
  • Dimension : 240x145x295mm

project
Hand Dryer ABS

Hand Dryer ABS

Specification :

  • Model : TS-5141
  • Material : ABS
  • Power : 2000W
  • Power Supply : 220V / 50-60Hz
  • Air Speed : 16 m/s
  • RPM : 2300
  • Drying Time : < 50 Sec.
  • Noise Level : 25 db
  • Dimension : 240x240x230mm
